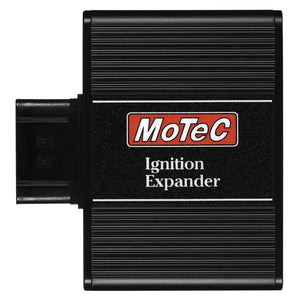

MoTeC Ignition Expander module (IEX)

$ 345.00

Continue Shopping or View Cart

The Ignition Expander module (IEX) is designed to increase the ignition output capacity of MoTeC ECUs.

The IEX connects to a single ignition output on the ECU and can drive up to 8 ignition modules. For 10 and 12 coil applications, two IEX units can be used.

Note that the IEX does not drive the coil directly, an ignition module is still required.

Compatible with
all MoTeC ECUs

Outputs

  • 8 x ignition outputs
  • Suits most ignition modules of falling edge type
  • The dwell time is controlled by the ECU
  • For 10 and 12 coil applications, two IEX units can be used

Communications

MoTeC specific coded signal supplied from a single ignition output on the ECU

Physical

Case size 70 x 100 x 35 mm

Weight 220 gram

18 pin waterproof connector with gold plated contacts
