IZZE IR Tire Temperature Sensor

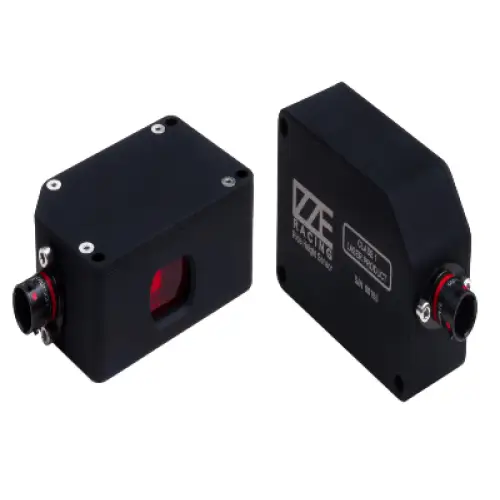

IZZE Infrared Tire Temperature Sensor IRTS-V2

The Izze-Racing tire temperature sensor is specifically designed to measure the highly transient surface temperature of a tire with spatial fidelity, providing invaluable information for chassis tuning, tire exploitation, compound selection, and driver development.

The sensor is capable of measuring temperature at 16, 8, or 4 laterally-spaced points, at a sampling frequency of up to 100Hz, object temperature between -20 to 300˚C, using CAN 2.0A protocol, and enclosed in a compact IP66 rated aluminum enclosure. The sensor is available with two field-of-views: ultra-wide (120˚) or wide (60˚).

The sensor is also available as a PCB assembly, without an enclosure, amounting to a significant reduction in cost and allowing the user to package the sensor to their specific needs.

Izze Racing Infrared Tire Temperature Sensor up to 100Hz Sampling Rate

Izze Racing Infrared Tire Temperature Sensor up to 16 Channels  Izze Racing Infrared Tire Temperature Sensor Fully Adjustable Emissivity
Up to 100Hz Sampling Frequency
Up to 16 Temperature Channels per Sensor Adjustable
Emissivity
Izze Racing Infrared Tire Temperature Sensor 1-Degree Accuracy Izze Racing Infrared Tire Temperature Sensor Field of View Izze Racing Infrared Tire Temperature Sensor Adjustable CAN ID
±1˚C Accuracy
Wide (60˚) & Ultra-Wide (120˚) FOV Adjustable
CAN ID

Video of Real-Time Tire Surface Temperature at VIR

Temperature Measurement Range, To
-20 to 300˚C
Package Temperature Range, Tp -20 to 85˚C
Accuracy (Central 10 Channels, Nominal)
(16-Ch Sensor)
±1.0˚C for 0˚C < Tp < 50˚C
±2.0˚C for Tp < 0˚C and Tp > 50˚C
Accuracy (First & Last 3 Channels, Nominal)
(16-Ch Sensor)
±2.0˚C for 0˚C < Tp < 50˚C
±3.0˚C for Tp < 0˚C and Tp > 50˚C
Noise Equivalent Temperature Difference, NETD 0.5˚C at 16Hz, ε = 0.85, To = 25˚C
Field of View, FOV 60˚x 8˚ (wide)
120˚x 15˚ (ultra-wide)
Number of Channels 16, 8, or 4
Thermal Time Constant
2 ms
Effective Emissivity
0.01 to 1.00 (default = 0.78)
Spectral Range 8 to 14 µm
Weight 20g
L x W x H (max, 60˚ FOV) 36.6 x 26.0 x 12.3 mm
L x W x H (max, 120˚ FOV) 31 x 29.0 x 12.3 mm
Protection Rating IP66
IZZE IR Tire Temperature Sensor Dimension

Seamless Integration into CAN-Capable Data Acquisition Systems
Izze-Racing Tire Infrared Temperature Sensor MoTeC Datalogger

MoTeC CAN
Configurations:

16 Channel 16-Channel

8 Channel8-Channel

4 Channel4-Channel

AiM CAN
Configurations:
xc1 16 Channel 16-Channel

xc1 8 Channel8-Channel

xc1 4 Channel4-Channel

DBC CAN
Template:

dbc 16 Channel
