RaceGrade Maximus Ultra Antenna SMA (M)

$ 17.50

Description

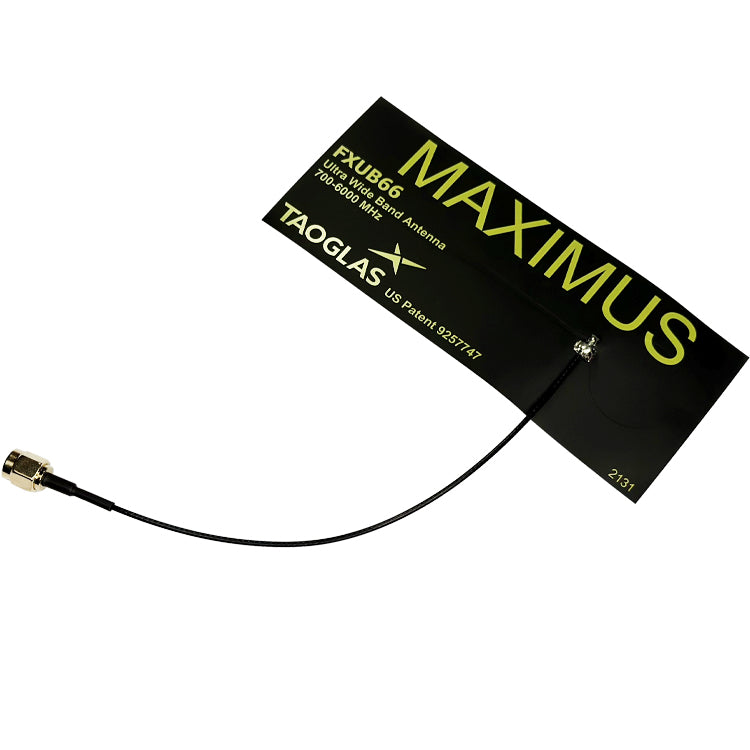

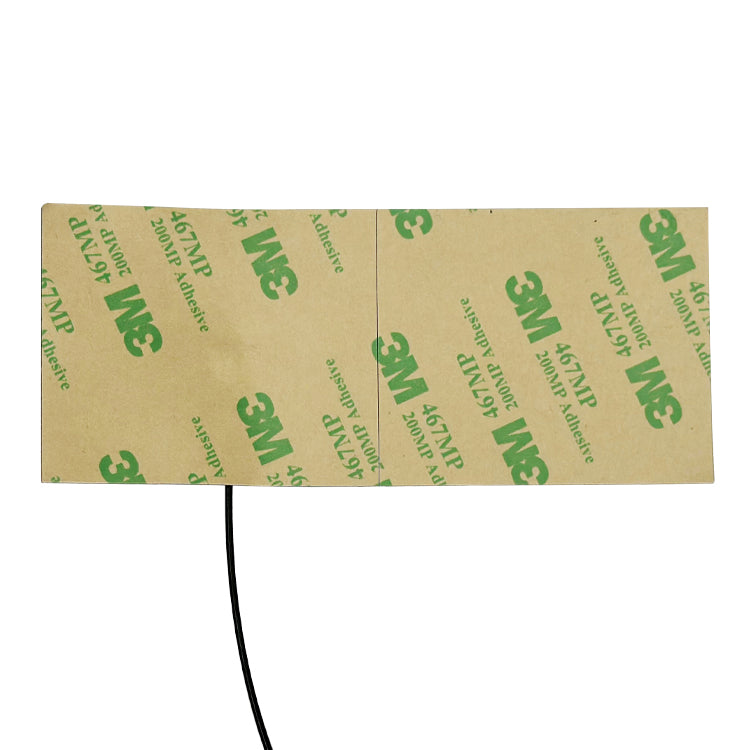

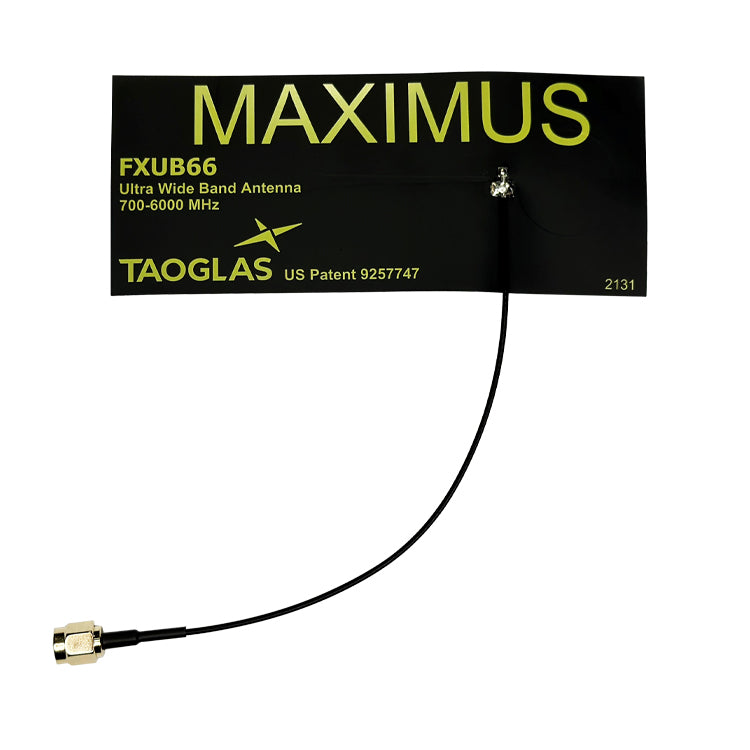

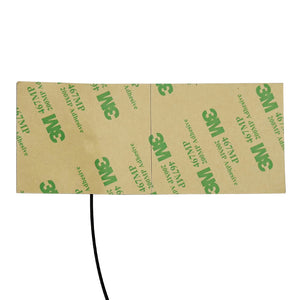

Flexible wideband antenna designed to cover all working frequencies in the 600-6000 MHz spectrum, including all 4G, NB-IoT, Cat-M, Wi-Fi, ISM and GNSS bands. The 120.4×50.4×0.2mm ultra thin antenna has a flexible body while keeping high efficiencies on all bands, ground-plane independent, with a cable and connector for easy installation. It is designed to be mounted directly onto a metal, plastic, or glass enclosure / cover. It is installed by a simple “peel and stick” process via 3M adhesive.
Specs:

RoHS: Yes
SMA Male Pin connector
Antenna Type: EMBEDDED ANTENNAS, CELLULAR
Mechanical Style: Flex PCB
Gain (Max): 5
Impedance: 50
Minimum Operating Temperature: -40°C
Maximum Operating Temperature:85°C
Mounting Style: Adhesive
Cable Type: 1.37 Coax
Frequency Range: 600-6000MHz
Connector Polarity: Normal
Cable Length (mm): 140
Length (mm): 120.4
Width (mm): 50.4
Height (mm): 0.2
