Temperature Sensors

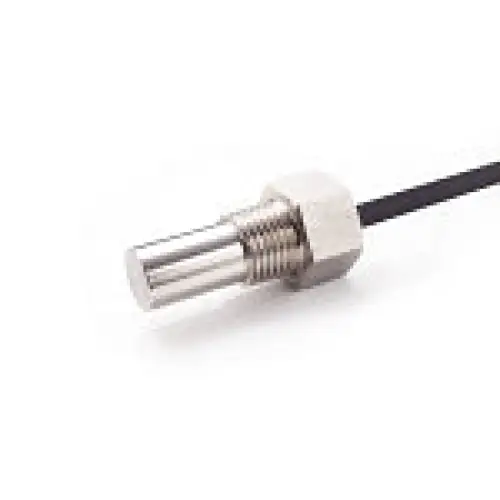

Texys PLATINUM TEMP SENSOR - PRO_ PT-100 / PT-1000

With its compact dimensions and characteristics, the Texense PT100 / PT500 or PT1000 (also known as RTD) enables our customers to check the fluid temperature of a racing vehicle.

Our full range of fluid temperature sensors allows different applications with the following threads: M6, M8 and 1/8 NPT.

This PT sensor allows to measure the resistance of a platinum element.
Examples:
Resistance of 100ohms at 0 °C and 138.5ohms at 100 °C.
Resistance of 1000ohms at 0 °C and 1385ohms at 100 °C.

Note: This technology can be used on other applications such as caliper temperature. Contact us for further information or special request

Range -50 to +200°C
Accuracy 2% FS
Sensitive element PT100 - PT500 - PT1000
Resistance See datasheet
