AiM MX UTV dash logger

Absolute freedom with MX UTV

MX UTV is the new AiM dash logger specifically designed for the off-road world, in order to offer our best technology to those racers whome crave for running in absolute freedom.

MX UTV acquires and shows the following important information:

• data coming from your ECU
• transmission belt temperature, by using the infrared sensor included in the kit

GPS Data: speed, position, time of the day and, with a precision of 1/100 sec, the lap times, thanks to the powerful built-in GPS Module.

Everything Right Under Control

ECU: set it up on your device!

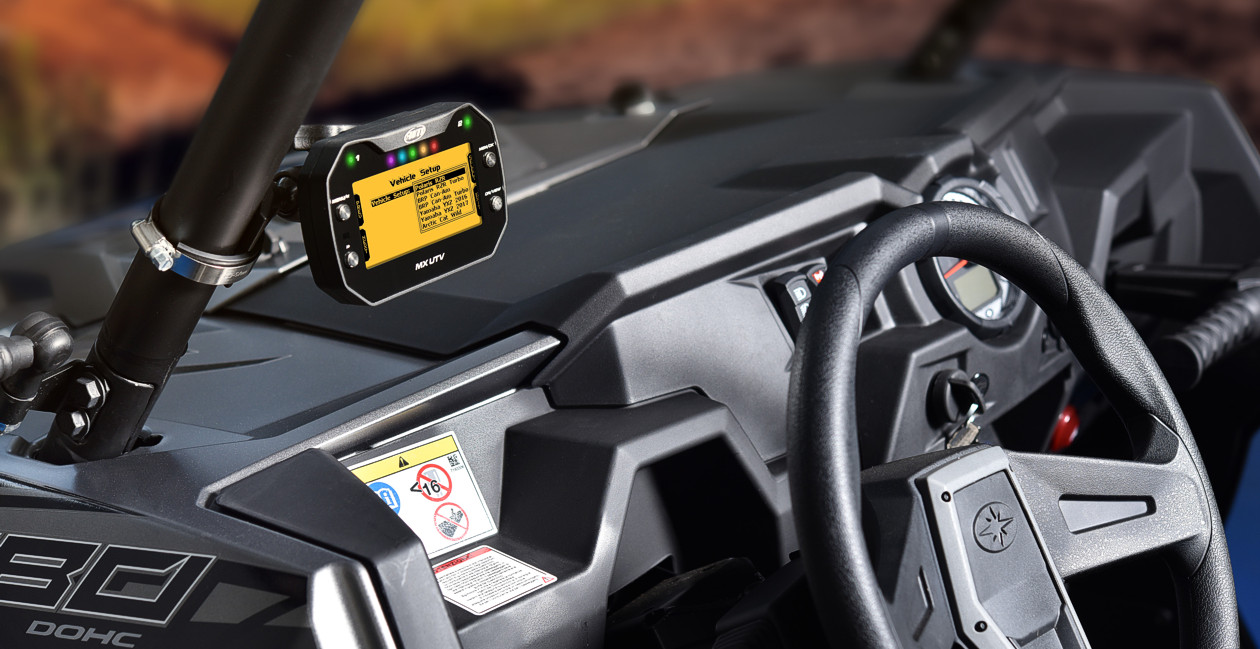

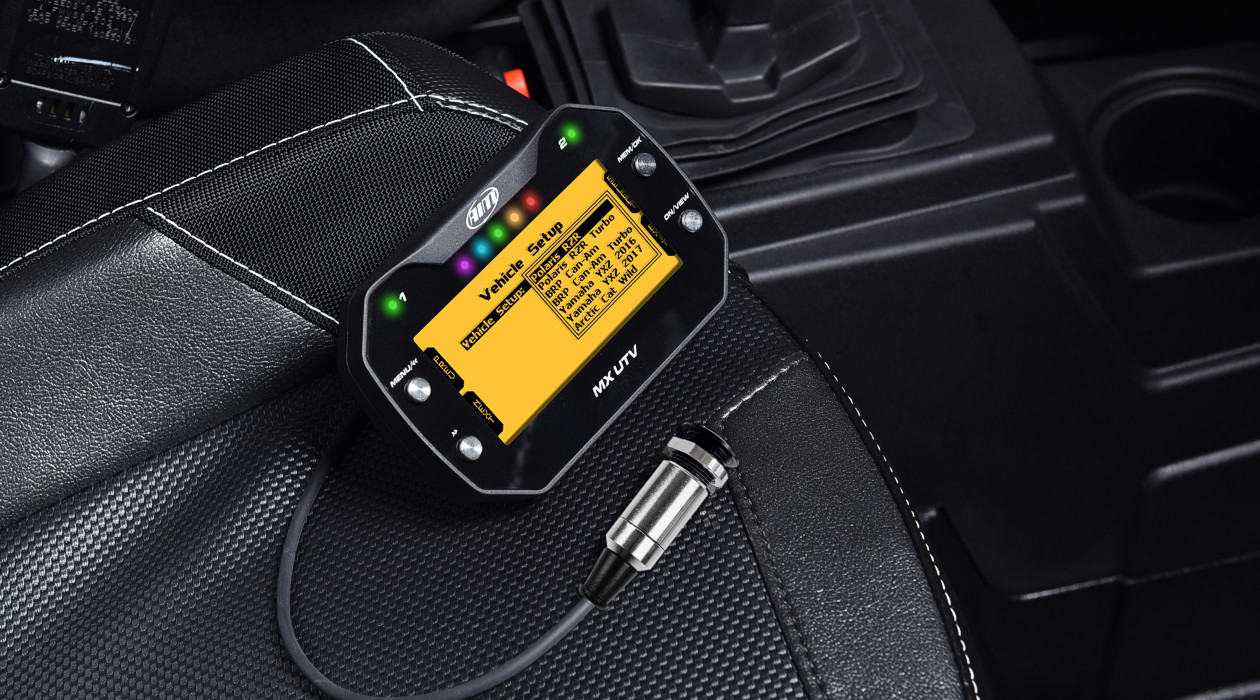

MX UTV allows you to select your vehicle brand and type directly from the dash menu, in order to get the following data from the different ECUs:

Transmission belt temperature, no more worries

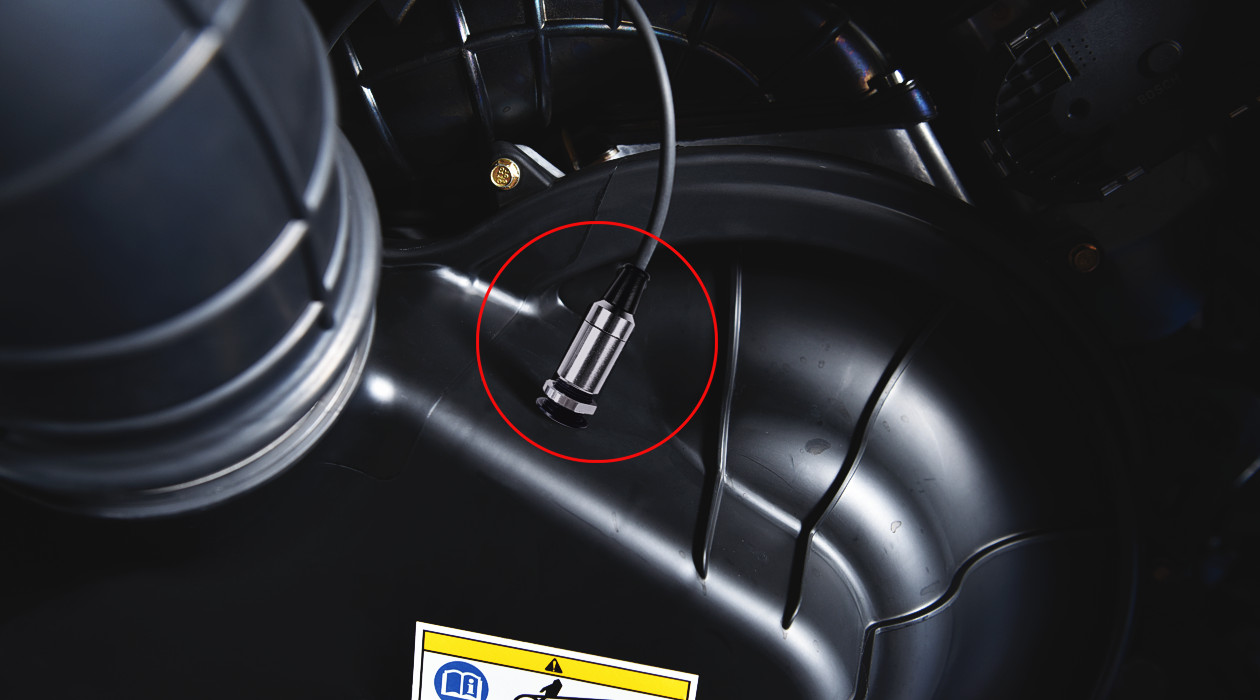

The transmission belt temperature is one of the main concern for UTV drivers. Thanks to the infrared temperature sensor, included in the kit, it is possible to constantly check the temperature, reading it directly on the display. Two RGB alarm LEDs will turn on when the temperature gets close to the critical level.

Choose your optimal setting:
Gear Shift Light or Predictive Lap Time

The top of the dash features 5 LEDs, that can be set up for 2 different functions: gear shift light or predictive lap time.
In case you configure the LEDs for Gear Shift Lights, they will help you in choosing the best instant to shift gear.
In case you configure the LEDs as Predictive Lap Time, they will give you a constant idea of how you are improving your lap time, every few feet.

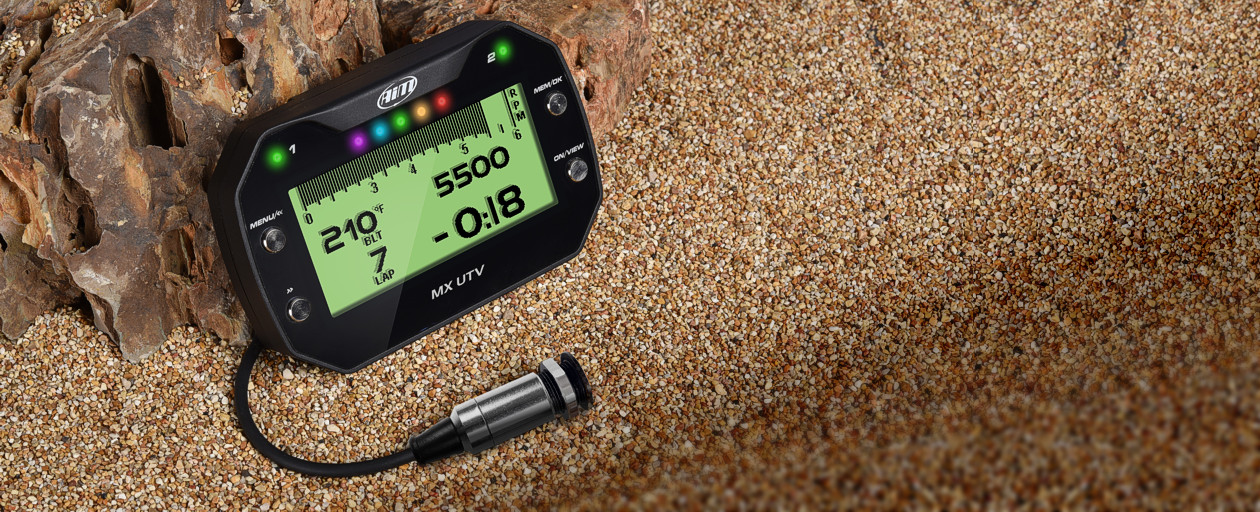

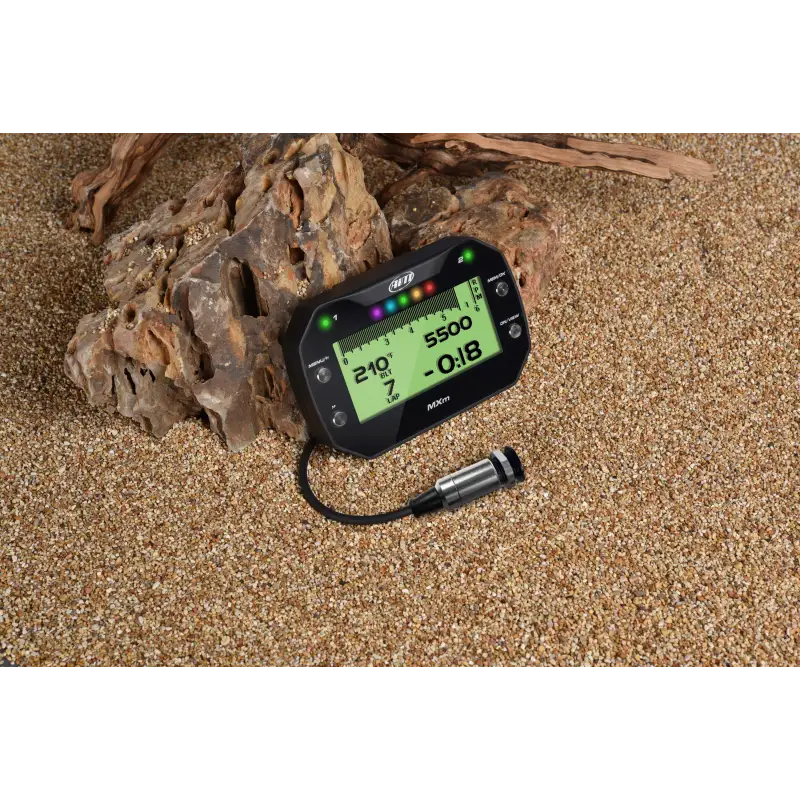

Fantastic readability

The wide LCD display has a freely configurable RGB backlight, which gives you the possibility to choose among eight different colours, and a light sensor that automatically switches on the backlight with low light conditions.

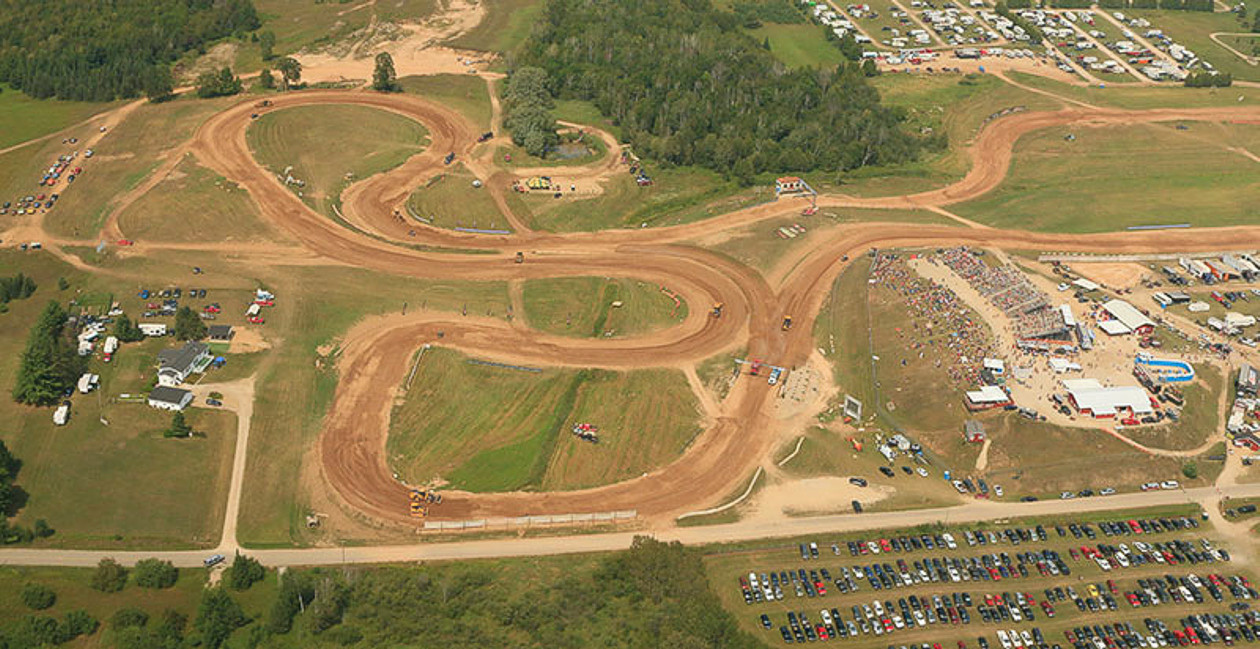

Find always your track and your data as well Thanks to the integrated GPS Module, MX UTV automatically recognizes the track you are racing on and calculates lap times and your position on the track with high precision. Besides, thanks to the auto-learning mode, MX UTV will anytime be able to add new tracks into its internal tracks database. All the acquired data, from the ECU, from the Belt Temp Sensor and from the GPS are stored into a huge 4 GB internal memory, that can log your data for several thousands of hours.

Wireless data download with Wi-Fi connection

Download all your data just wirelessly, for an even more practical usage between your track-day sessions or during your race weekends. You won’t worry anymore about cables that you may have forgotten at home: using a secure 802.11 Wi-Fi connection, all your data will be stored straight on your PC, ready to be deeply analyzed via our free software Race Studio 3.

Via Race Studio 3, indeed, graphs, histograms, and tables will help you study your performance, providing an objective support to avoide mistakes and improve performances.

Expand your system according to your needs

Using the built-in CAN bus, you can add expansion modules to the MX UTV to increment the performance and the data acquired:

LCU-One CAN Wide band Lambda controller LCU-One, with Bosch LSU 4.9 probe, providing all Air/Fuel data and lambda value, allows to perfectly tune the carburetion.
SmartyCam HD cameras The on-board cameras that overlays on videos the data sampled by your logger. SmartyCam HDRev. 2.1 SmartyCam GP HD
