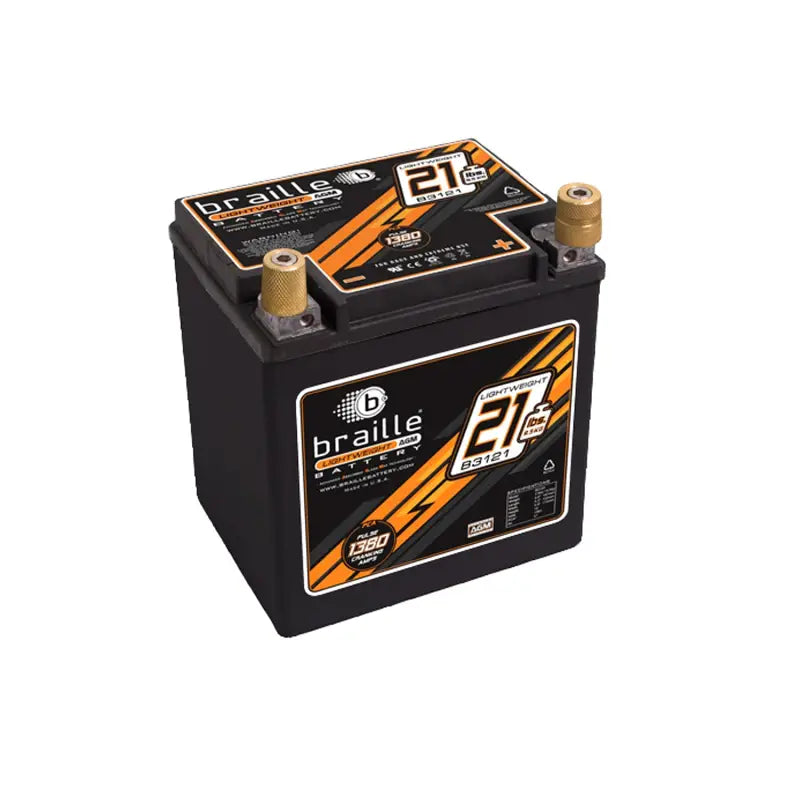

Braille Lightweight Advanced AGM Racing Battery _B3121

At only 21 lbs, the B3121 Braille Lightweight Advanced AGM Racing Battery is a high-performance upgrade from a traditional lead acid battery. Offering weight reduction, more power output and lasting up to 2 times longer than traditional lead acid batteries!
  • Superior starting capabilities with high cranking amp output per kg
  • Fast and efficient recharge, up to 2 times faster than traditional lead acid batteries
  • Can be used in “Total Loss” (no alternator) applications
  • Engineered for high shock and vibration applications
  • Up to 2/3 weight reduction for equivalent cranking performance

      Braille Lithium Chargers web link.

      Physical Specs

      Chemistry PB
      Length (in) 6.6″
      Width (in) 5.2″
      Height (in) 6.8″
      Weight (lbs) 21
      Terminal Type Steel terminal block with M6 bolt
      Polarity Right

      Technical Specs

      5S PCA 1380
      10s PDC 124
      Voltage 12
      Capacity (Ah) 31.0
      Capacity (Wh) 372
      Charging Temperature    0C to 50C
      Discharge Temperature range  -40C to +60C
      Storage temperature  -40C to +60C


      Recharge Voltage 14.4V – 14.6V
      Maintenance charge voltage 13.8V
