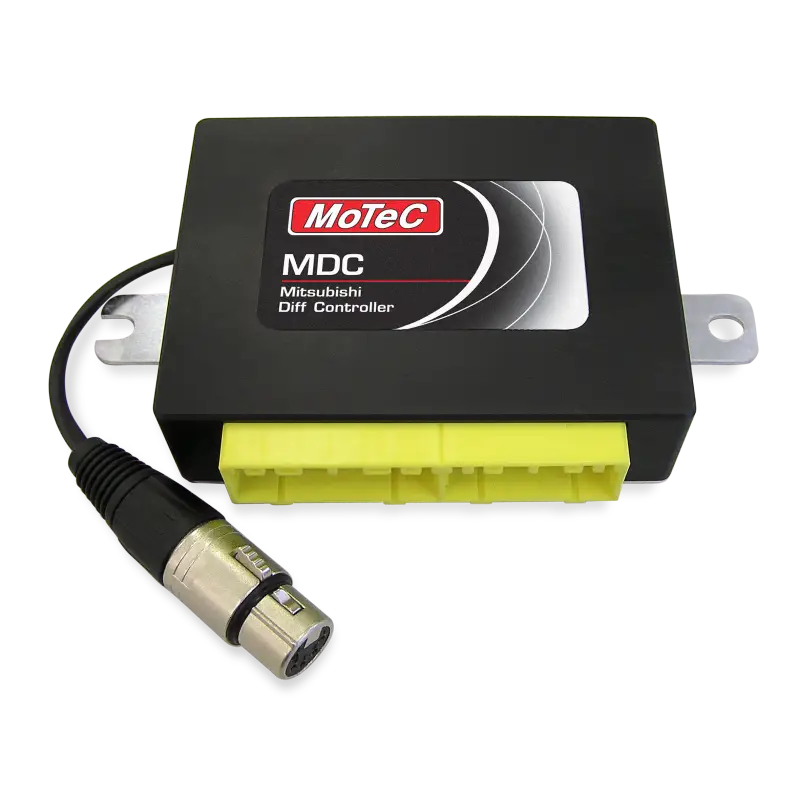

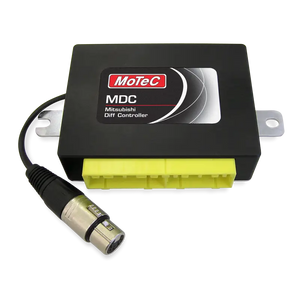

MDC Suits Mitsubishi Lancer (Evolution VII - IX)

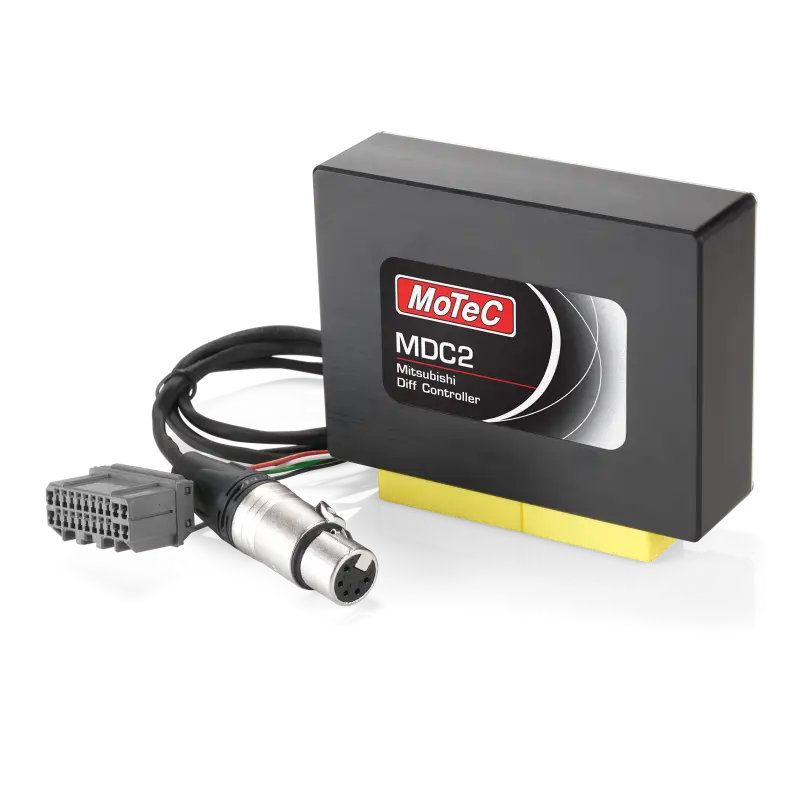

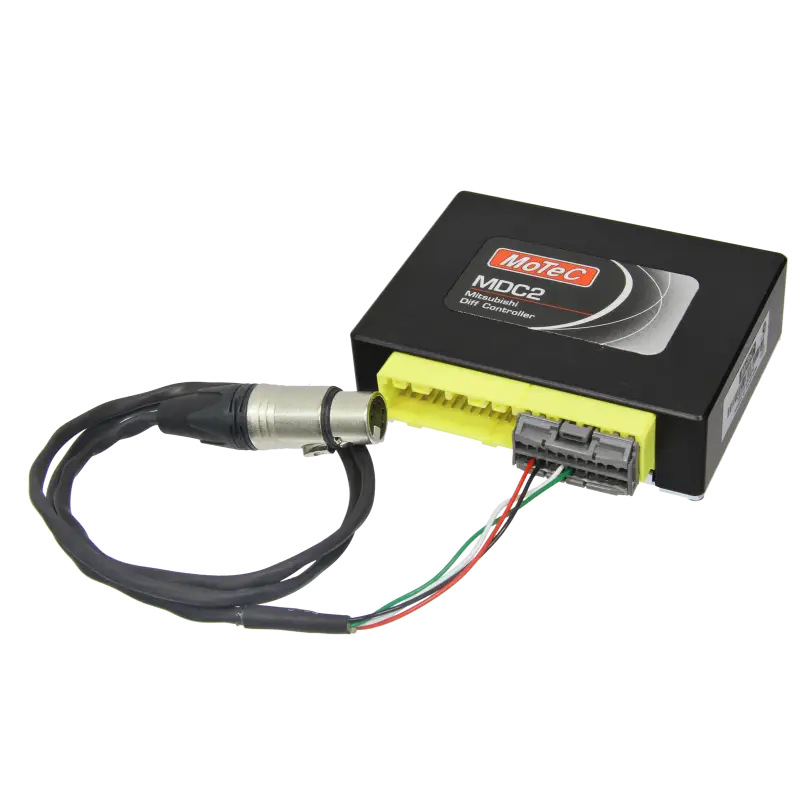

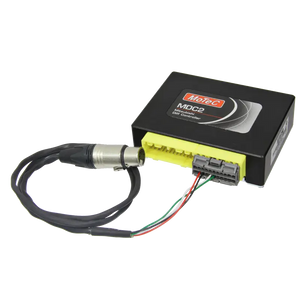

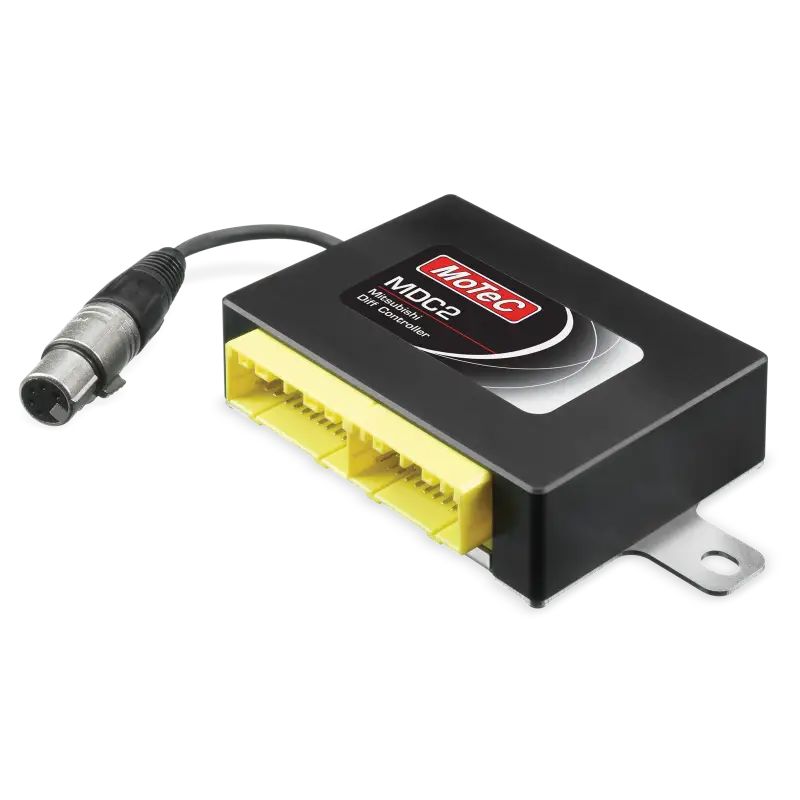

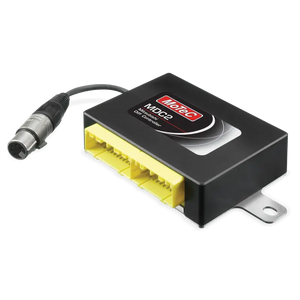

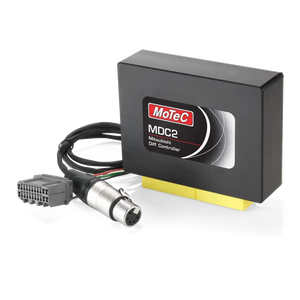

MDC2 Suits Mitsubishi Lancer (Evolution X (RS))
MoTeC’s Mitsubishi Diff Controllers (MDC and MDC2) are suitable for Mitsubishi Lancer Evo models. They replace the factory fitted Active Centre Diff (ACD) controller as a bolt-in replacement making use of the factory mounting points under the dashboard. The MDCs can be used in vehicles fitted with the ACD/AYC (Active Yaw Control), but the AYC will be disabled.
It is worth considering the installation of a MoTeC M800 Plug-In ECU in addition to the MDC to take advantage of several additional features. Using the RS232 serial communication link, all values from sensors connected to the MDC can be logged in the M800 Plug-In ECU without having to duplicate any of the sensors.
Functionality
The MDC is used to adjust the torque split between the front and rear differentials to achieve greater control over handling characteristics such as traction, braking on loose surfaces, turn-in response, and understeer on both corner entry and exit.
The centre differential is essentially a limited slip differential with adjustable preload. The preload is proportional to the fluid pressure in the centre differential. The MDC works by regulating solenoid current, which in turn, controls the fluid pressure. When no pressure is applied (0% lock) the centre differential operates as an 'open diff'. With increasing fluid pressure (increasing percentage lock) the preload increases, requiring more torque difference between front and rear wheels before the centre differential will slip.
There are six selectable control modes: 0% lock, 100% lock and four user-configurable modes. These modes can be cycled through using the factory dash mounted ACD button.
Communications
Physical
Connector
Case size
111 x 83 x 31 mm, excluding mounts
