RaceGrade CAN FD Gateway (CLUB)

$ 1,900.00

Continue Shopping or View Cart

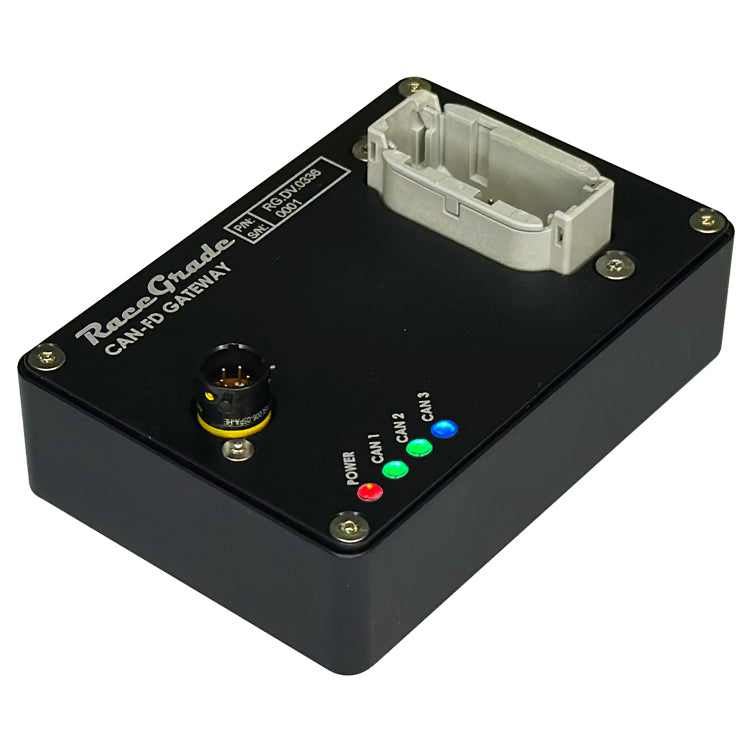

    The Club CAN FD Gateway is a three CAN bus bridge device with user configurable bus-to-bus translations. It is a fully featured gateway that allows for the translation of data between CAN and CAN FD busses. Each bus can be individually configured for message format, bus speed, and bus termination. The user interface software offers the flexibility to configure the device for various roles, ranging from a basic baud rate converter to a sophisticated bi-directional CAN communication hub. The CAN gateway is programmed through a PC-based software, which utilizes Ethernet connectivity and provides support for Vector DBC import for inbound messaging. Its configurations can be generated securely or stored in the device for easy distribution. The device is equipped with LED indicators that show the status and bus configuration, providing visual cues for function and status.
    Specifications:
    • Operating Voltage: 6 - 26V
    • Operating Temperature: -20 - 95C
    • Weight: 200 grams
    • Dimensions: 3.95” x 2.70” x 1.60”
    • CAN Busses: 3
    Features:
    • User Configurable CAN-FD or CAN Bus Type
    • Ethernet Based Communication
    • Gateway Input Captures
    • LED Power Status
    • Individual CAN Bus Status LEDs
    • Seal for moisture protection
    • Switchable Terminating Resistors
