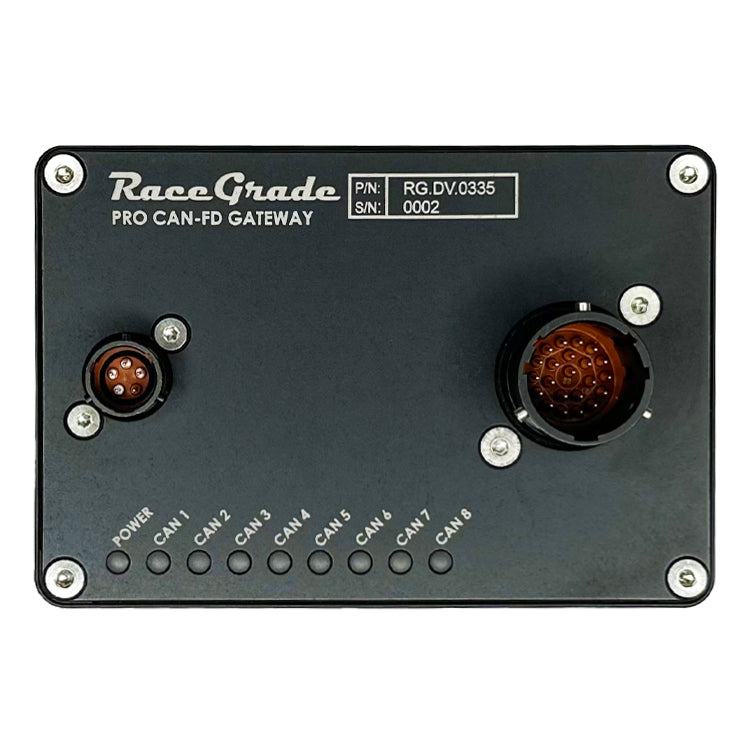

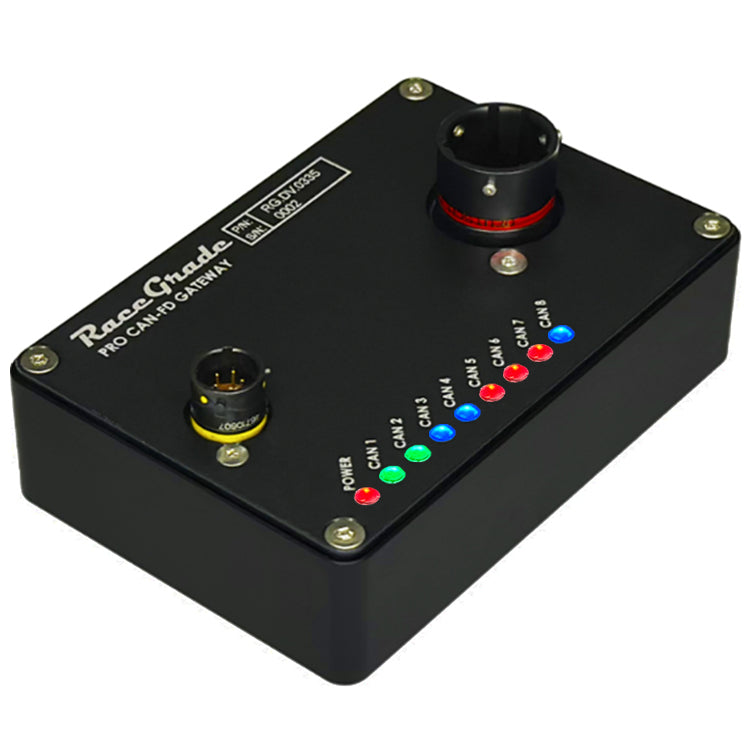

The CAN FD Gateway (PRO) is an eight CAN bus bridge device with user-configurable bus-to-bus translations, including between CAN and CAN FD busses. Each bus can be individually configured for message format, bus speed, and bus termination. The user interface software offers the flexibility to configure the device for various roles, ranging from a basic baud rate converter to a sophisticated bi-directional CAN communication hub. The software configures the CAN gateway through an Ethernet connection and supports Vector DBC import for inbound messaging. Its configurations can be generated securely or stored in the device for easy distribution. The device is equipped with LED indicators that show the status and bus configuration, providing visual cues for function and status.
Specifications:
- Operating Voltage: 6 - 26V
- Operating Temperature: -20 to 85C
- Weight: 276 grams
- Dimensions: 3.95” x 2.70” x 1.60”
- CAN Busses: 8
Features:
- User Configurable CAN FD or CAN Bus Type
- Ethernet Based PC User Interface
- Gateway Input Captures
- Power and CAN Status LEDs
- Sealed for moisture protection
- Switchable Terminating Resistors
Comms cable:
- Ethernet Panel Mount Cable 1M - ASL Autosport
