A wide range of data sources

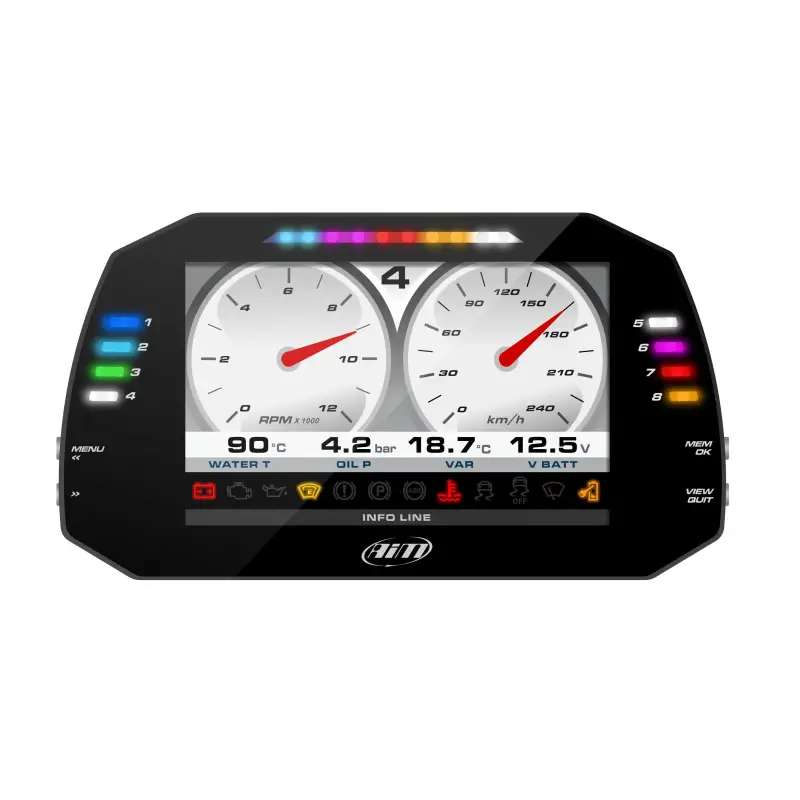

MXG 1.2 Strada is a 7" color display with great visual impact, configurable to show lap times and all the info coming from the Engine Control Unit, analog/digital inputs, pre-defined math channels and - optionally - the GPS08 Module.

Click the icons and learn more:

AiM MXG 1.2 Strada AiM MXG 1.2 Strada AiM MXG 1.2 Strada AiM MXG 1.2 Strada AiM MXG 1.2 Strada
ECU connection Analog/digital inputs Math channels Second CAN GPS08 Module

MXG 1.2 Strada is available in two versions:

Freely configurable pages

You can define all the custom pages you wish,
choosing among a wide library
of page styles, defining which data
to be shown, their end of scale and measure units.
Swapping between pages can be managed
pushing one or two pushbuttons.

AiM MXG 1.2 Strada

High contrast TFT display

A high contrast TFT display identifies
MXG 1.2 Strada at the first glance.
An ambient light sensor keeps
the backlight at optimum brightness levels.

Flexible alarms & custom street icons

MXG 1.2 Strada features eight configurable RGB alarm LEDs: you choose the conditions, you choose the colors. Select a solid alarm or flashing one - and the flashing frequency, choose to have an accompanying text message, and set the alarm priorities. Furthermore you can select the street icons you need among the wide list you will find in "Race Studio 3 - Icons Management" and set them up the way you prefer or according with your needs. Any of them is fully configurable and if this shouldn't be enough, you will be able to upload and set up your own customized icons.


Digital output

MXG 1.2 Strada features a LOW SIDE type
(switch to ground) digital output configurable
in order to be activated/deactivated depending
on the value of the analog/digital inputs
or on impulses coming from the ECU.
This permits to automatically run external
systems, i.e. to switch on/off additional
lights, to activate/de-activate a cooling
fan or circulation pumps, etc. when a certain
event happens.

More info

AiM MXG 1.2 Strada

Camera inputs, also for mirror camera

Two analog camera inputs are available, to swap your display into a mirror camera, through pushbutton command or event management.

More info

AiM MXG 1.2 Strada


Integrated shift light array

Choose from a host of advanced
multicoloured RGB shift light patterns
that can be customized as you like,
and for each unique gear when required.

A modular system

Using the built-in CAN bus you can add expansion modules to visualize additional info:

GPS08 Module

Thanks to GPS08 Module (included in the kit) and its Race Studio 3 software, you can immediately get laptimes and all data needed for engine tuning as well as for improving driving technique.


GPS08 Module

Channel Expansion

It permits to add 4 0-5Volt analog channels for pressure, temperature sensors and potentiometers. Two of these channels can be configured to receive digital inputs like wheel speed.

Channel Expansion

TC Hub

It adds 4 K thermocouples.


TC Hub

LCU-One CAN

Wide band Lambda controller LCU-One, with Bosch LSU 4.9 probe, providing all Air/Fuel data and lambda value, allows to perfectly tune the carburetion.


LCU-One CAN

SmartyCam HD cameras

The on-board cameras that overlays on videos the data sampled by your logger.

SMARTYCAM HD Rev. 2.1

SMARTYCAM GP HD Rev. 2.2


SmartyCam HD Rev.2

Connection example

These are only some of the items that can be added to our MXG 1.2 Strada for incrementing the performance
and the data acquired:

CAN output

With the CAN Output you can send messages directly
to an existing CAN network in order to improve
the range of vehicle control possibilities.



AiM MXG 1.2 Strada

Race Studio 3 configuration

MXG 1.2 Strada is to be configured via Race Studio 3: you can create, modify, delete, import and export configurations with all channels, ECU drivers, Math channels, Display Pages, Digital output, Alarms, Shift Lights and all the expansions you need.

AiM MXG 1.2 Strada Website Product Description.

 Display 7” TFT
 Resolution 800x480 pixels
 Contrast 1000:1
 Brightness 700cd/m2 - 1,100 Lumen
 Ambient light sensor Yes
 Alarm LEDs 8 configurable RGB LEDs
 Shift lights 10 configurable RGB LEDs
 CAN connections 2
 ECU connections CAN, RS232 or K-Line
 ECU compatibility + 1,000 industry leading ECUs
 Expansion CAN connection GPS, Channel Expansion, TC Hub, Lambda Controller, SmartyCam HD
 Analog inputs 8 fully configurable, max 1,000 Hz each
 Digital inputs 1 speed input, coil RPM input
 Digital outputs 1 (1 A max)
 Second CAN Yes
 Body Anodized Aluminum
 Pushbuttons Metallic
 Connectors 2 AMP connectors + 1 Binder connector
 Power consumption 400 mA
 Dimensions 237x127.6x26 mm
 Weight 950 g
 Waterproof IP65



In the Box

MXG 1.2 Strada, USB cable, 14 pins standard wiring, 23 pins connector + contacts, software installation CD.

ACCESSORIES

23 pins AMP connector wiring for MXS Strada - Standard version

Part number: V02573220

23 pins AMP connector wiring for MXS Strada - Standard version

Infrared optical receiver 90 cm lenght

Part number: X41RX19090

AiM Infrared optical receiver 90 cm lenght

Infrared optical receiver 3 m lenght

Part number: X41RX19300

AiM Infrared optical receiver 90 cm lenght

Remote buttons interface

AiM MXG 1.2 Strada

Mirror camera

Single RearMaster mirror camera patch cable
Double RearMaster mirror camera patch cable
Single AiM mirror camera patch cable
Double AiM mirror camera patch cable

AiM Mirror camera

SPARE PARTS

14 pins standard harness

Part number: V02573320

AiM 14 pins standard harness

14 pins OBD harness

Part number: V02573340

AiM MXG 1.2 Strada

14 pins connector + contacts

Part number: 5CND7762732 + 5CT0770520

AiM MXG 1.2 Strada

23 pins connector + contacts

Part number: 5CND7706802 + 5CT0770520

AiM 23 pins connector + contacts

USB adapter

Part number: V02573030

Download the tech sheet

USB Cable

Part number: X90TMPC002

AiM USB cable - race beat

USB bulkhead adapter

Part number: V02573200

AiM USB bulkhead adapter
