AiM EVO4S

$ 1,349.00

Description
Technical Specifications
Accessories / Spare Parts
Downloads

A wide range of sources for your data

EVO4S is the evolution of the well known EVO4.
It maintains the same connection logic, one connector per channel, but with a completely redesigned internal electronic board, fully compatible with the last generation of AiM dashloggers and with the new powerful Race Studio 3 software.
EVO4S samples all the information you need: data coming from your vehicle ECU via CAN, RS232 or K-line, from the internal accelerometers and gyro, from the GPS08 Module included in the kit. And from analog/digital inputs, external expansions as well as predefined math channels. Sensors can be connected to 5 configurable analog channels, to the RPM input and to 2 wheel speed inputs.


ECU connection	GPS08 Module

Sensors

Many sensors can be connected to EVO4S via:
5 analog channels with configurable 12 bit 0-5 Volt, 0-500 mV, 0-50 mV inputs or thermocouple input, used to sample data coming from temperature, pressure, suspension and other kinds of sensors.
2 speed inputs, which allow to monitor the different wheels behavior.
1 RPM input, which manages square wave signals transmitted by the ECU, or pulse signals picked from the coil command (low voltage).

AiM EVO4S

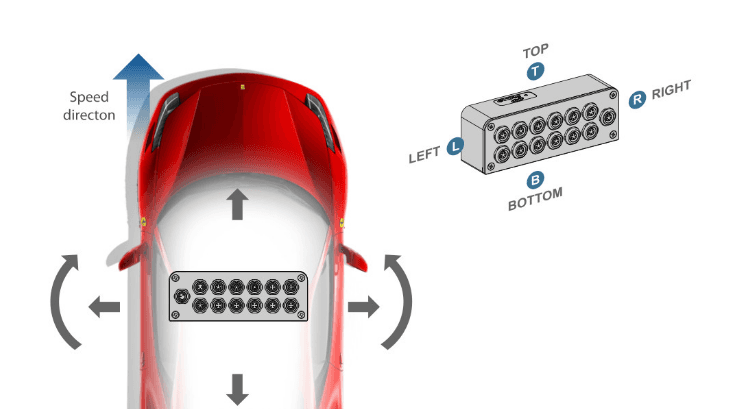

Internal three-axial accelerometer and gyro sensor

A built-in inertial platform lets you have the most powerful system for understanding oversteering, understeering, banking, etc.

AiM EVO4S

Digital outputs

EVO4S features a LOW SIDE type (switch to ground)
digital output. You can configure it in order
to turn it on or off depending on the value
of the analog or digital inputs, ECU values,
expansion values, GPS information or math channels.

More info

CAN output

With the CAN Output you can send messages
directly to an existing CAN network in order
to improve the range of vehicle control possibilities.

Expand your EVO4S as much as you need Add expansion modules via our built-in CAN bus:
Channel Expansion It permits to add 4 0-5Volt analog channels for pressure, temperature sensors and potentiometers. Two of these channels can be configured to receive digital inputs like wheel speed.
LCU-One CAN Wide band Lambda controller LCU-One, with Bosch LSU 4.9 probe, providing all Air/Fuel data and lambda value, allows to perfectly tune the carburetion.
SmartyCam HD cameras The on-board cameras that overlays on videos the data sampled by your logger. SMARTYCAM HD Rev. 2.1 SMARTYCAM GP HD Rev. 2.2
Memory Module The Memory Module is a small SD Card holder that can be connected via CAN bus to your AiM logger in order to record the data during your tests.

Expand your EVO4S as much as you need

Add expansion modules via our built-in CAN bus:

Channel Expansion

It permits to add 4 0-5Volt analog channels for pressure, temperature sensors and potentiometers. Two of these channels can be configured to receive digital inputs like wheel speed.

LCU-One CAN

Wide band Lambda controller LCU-One, with Bosch LSU 4.9 probe, providing all Air/Fuel data and lambda value, allows to perfectly tune the carburetion.

SmartyCam HD cameras

The on-board cameras that overlays on videos the data sampled by your logger.

SMARTYCAM HD Rev. 2.1

SMARTYCAM GP HD Rev. 2.2

Memory Module

The Memory Module is a small SD Card holder that can be connected via CAN bus to your AiM logger in order to record the data during your tests.

... and all sensors you may need to improve the EVO5 performance.

Connection example

AiM EVO4S

Available displays

To visualize in real time all the data,
EVO4S can be connected to the visor
GS-Dash or to the Formula Steering Wheel 3,
our professional steering wheel
for Formula and Sports cars.

AiM EVO4S

Download your data to a PC for a professional data analysis

Data recorded by EVO4S can be downloaded to PC and analyzed with the professional Race Studio Analysis software: graphs, histograms and tables will help you evaluate your performance, providing an objective support to avoid mistakes and improve your driving technique.

DOWNLOAD RS3

AiM EVO4s Website Product Description.

VO4S-EVO5 COMPARISON

EVO4S

EVO5

Connection to 1,000+ ECU's

Yes

Second CAN

Yes

Wi-Fi connectivity

Yes

External modules connection

Yes

Fully configurable analog inputs (max 1,000 Hz each)

Digital inputs:

Lap signal, coil RPM input
Speed inputs

Yes

Internal 3 axis ±5G accelerometer + 3 axis gyro

Yes

Lap time through:

GPS
Optical receiver

Yes

Digital outputs (1 A max)

Internal memory

4 GB

SD card

Yes

Connectors

13 Binder

2 Motorsport

Anodized aluminum body

Yes

Dimensions

130 x 35 x 46.6 mm

114.4 x 47.2 x 58.8 mm

Weight

330 g

300 g

Waterproof IP65

Yes

In the box

EVO4S, harness, GPS08 Module and software.

AiM EVO4S

ECU connection	CAN, RS232 or K-Line
External modules connection	GPS Module, Channel Expansion, TC Hub, Lambda controller, SmartyCam HD
Analog inputs	5 fully configurable, max 1,000 Hz each
Digital inputs	2 Speed inputs, lap signal, coil RPM input
Inertial platform	Internal 3 axis ±5G accelerometer + 3 axis gyro
Digital outputs	1 (1 A max)
Internal memory	4 GB
Connectors	13 Binder connectors
Body	Anodized aluminum
LEDs	1 system status
Dimensions	130 x 35 x 46.6 mm
Weight	330 g
Waterproof	IP65

ACCESSORIES

RS232 cable

Part number: V02585060

CAN + power cable

Part number: V02585010

GPS08 Module

SPARE PARTS

Power cable Part number: V02551200
Digital output + RPM cable Part number: V025850
CAN cable Part number: V02585030
OBD2 (CAN + K-Line) cable Part number: V02585030
USB cable Part number: V02563030

Sports bikes connection kits for EVO4S:

AiM designs specific applications to allow easy connection of EVO4S on sports bikes.
The available kits for several Ducati, Kawasaki and Suzuki models* are:

Cable for
Ducati 848, 1098, 1198
Ducati 899, 959, 1199, 1299 Panigale
Ducati Hypermotard 796, Multistrada 1200

Part number: V02569170

Cable for Kawasaki ZX-10R

Part number: V02569220

Cable for Suzuki GSX-R

Part number: V02569140

AIM EVO4S User guide
AIM EVO4S Technical sheet
