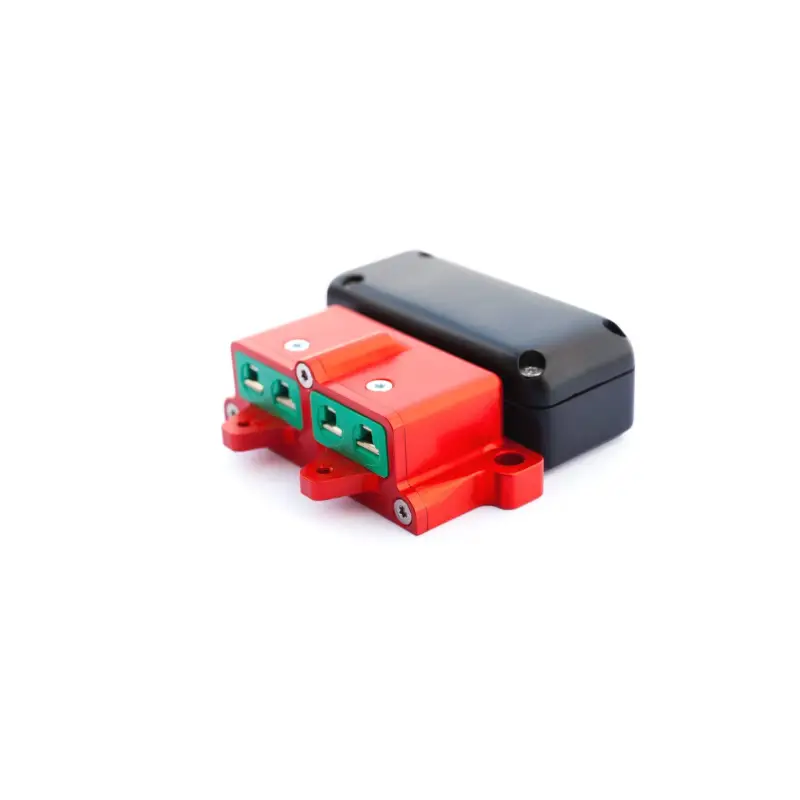

Texys THN2x-WS4 - Thermocouple Amp

The NEW Texense THNx2-WS4 has been designed and developed to simplify wiring harness instillations, helping to eliminate potential electrical problems and save on costs (replacement of slip rings). Its highly compact size and wireless configuration allow it to be integrated into many systems, saving testing departments time in preparation and tests.

Temperature data is broadcast (868/902/920 MHz) to our GenWM master receiver which outputs via a user configurable CAN system (CAN bus 2.0A output data at 10Hz sampling frequency). All Our Texense CAN based sensors are user programmable, most parameters can be configured, such as: baud-rate, emission frequency, CAN id s, units etc.

Its small size, high battery life (75 hours), impact and vibration resistant design make the THNx2-WS4 the ideal temperature measurement solution, the sensor is also validated to 3,000 rpm, making it perfect for rim or disc temperature measurements.

Ranges -100 to 1250 °C
RF Frequency 868 or 920MHz (902Mhz available in USA)
Supply voltage receiver 6 to 16 V
Supply voltage sensor Replaceable 3.6V battery
Supply current 45 mA
Output Data CAN
