Data Logger

AiM MXS 1.2

MXS and MXG are the new AiM dashloggers designed to acquire and display data coming from your ECU, the internal accelerator and gyro, as well as from the GPS08 Module included in the kit, analog/digital inputs and predefined math channels.
Performance and data acquired can also be incremented adding up to eight expansion modules.
The only difference between the MXS and MXG is size: a compact 5" display for MXS, a 7" display for MXG, better fit for wide cockpit installations.

A wide range of data sources

MXS 1.2, the evolution of MXS, is the dashlogger designed to acquire and display data coming from your ECU, the internal accelerometer and gyro, as well as from the GPS08 Module included in the kit, analog/digital inputs and predefined math channels. Performance and data acquired can also be incremented adding up to eight expansion modules. Its 5" display has been specifically designed for small cockpits installation.

AiM MXS 1.2 AiM MXS 1.2 AiM MXS 1.2 AiM MXS 1.2 AiM MXS 1.2 AiM MXS 1.2
ECU connection Analog/digital inputs Internal accelerometer and gyro Math channels Second CAN GPS08 Module


CAN output

With the CAN Output you can send messages directly
to an existing CAN network in order to improve
the range of vehicle control possibilities.

Freely configurable pages

You can define all the custom pages
you wish, choosing among a wide library
of page styles, defining which data
to be shown, their end of scale and measure units.
Swapping between pages can be managed
pushing one or two pushbuttons.

 AiM MXS 1.2

High contrast TFT display

A high contrast TFT display identifies
MXS 1.2 at the first glance.
An ambient light sensor keeps
the backlight at optimum brightness levels.

Flexible alarms

MXS 1.2 features six configurable RGB alarm LEDs: you choose the conditions, you choose the colors.
Select a solid alarm or flashing one - and the flashing frequency, choose to have an accompanying text message, and set the alarm priorities.



Two digital outputs

MXS 1.2 features two digital outputs. The two digital outputs (Dout) are LOW SIDE type (switch to ground): they can be configured in order to be turned on/off depending on the value of the analog or digital inputs.

They permit to automatically run external systems, i.e. to switch on/off additional lights, to activate/de-activate a cooling fan or circulation pumps, etc. when a certain event happens.

More info

AiM MXS 1.2

Camera inputs, also for mirror camera

Two analog camera inputs are available, to swap your display into a mirror camera, through pushbutton command or event management.

More info

AiM MXS 1.2
Integrated shift light array

Choose from a host of advanced multicoloured RGB shift light patterns that can be customized as you like, and for each unique gear when required.



LCU-One CAN

Wide band Lambda controller LCU-One, with Bosch LSU 4.9 probe, providing all Air/Fuel data and lambda value, allows to perfectly tune the carburetion.

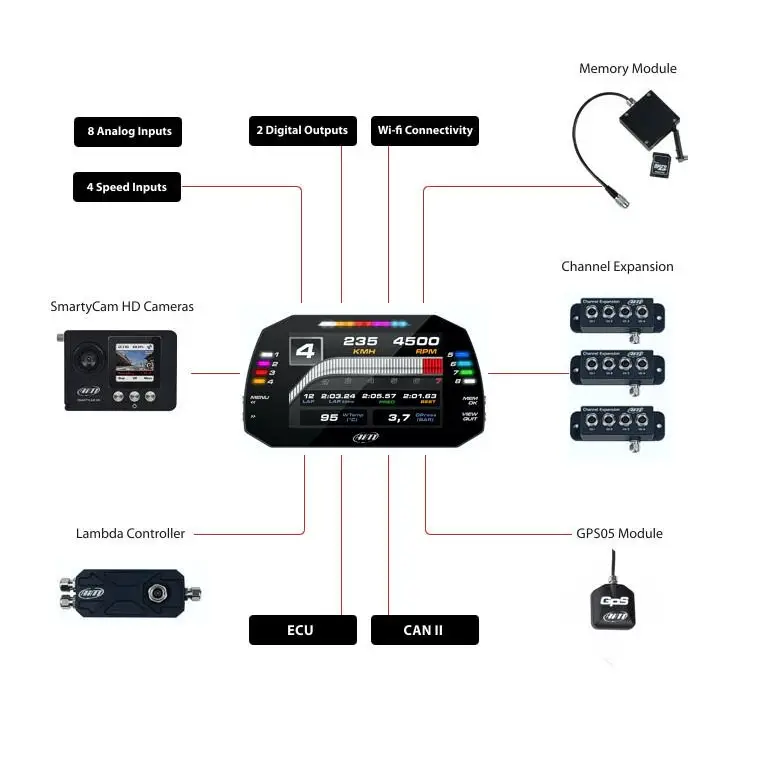

Expand the system, according to your needs

Using the built-in CAN bus, you can add expansion modules to the MXS to increment the performance and the data acquired:

GPS08 Module

Thanks to GPS08 Module (included in the kit) and its Race Studio 3 software, you can immediately get laptimes and all data needed for engine tuning as well as for improving driving technique.


GPS08 Module

Channel Expansion

It permits to add 4 0-5Volt analog channels for pressure, temperature sensors and potentiometers. Two of these channels can be configured to receive digital inputs like wheel speed.

Channel Expansion

TC Hub

It adds 4 K thermocouples.


TC Hub

LCU-One CAN

Wide band Lambda controller LCU-One, with Bosch LSU 4.9 probe, providing all Air/Fuel data and lambda value, allows to perfectly tune the carburetion.


LCU-One CAN

SmartyCam HD cameras

The on-board cameras that overlays on videos the data sampled by your logger.

SMARTYCAM HD Rev. 2.1

SMARTYCAM GP HD Rev. 2.2


SmartyCam HD Rev.2


Memory Module

The Memory Module is a small SD Card holder that can be connected via CAN bus to your AiM logger in order to record the data during your tests.


Memory Module

AiM MXS 1.2

Race Studio 3, the almighty software

Race Studio 3 is the heart of your MXS 1.2, managing all your activities related to:

Configuration

With Race Studio 3 you can create, modify, delete, import and export configurations with all channels, ECU drivers, Math channels, Display Pages, Digital outputs, Alarms, Shift Lights and all the expansions you need. You will also be able to manage the map of all your racing tracks and compare two laps watching the video recorded by SmartyCam HD cameras.

AiM MXS 1.2

Analysis

With Race Studio 3 you can also analyse all data recorded by MXS 1.2 and downloaded to your PC: graphs, histograms and tables will help you study your performance, providing an objective support to avoid mistakes and improve performances.

AiM MXS 1.2

DOWNLOAD RS3

Wi-Fi connectivity

Makes it even more convenient to configure, calibrate, and download your data
wirelessly, using a secure 802.11 WiFi connection: no need to move your PC close
to the vehicle anymore, you can do it from your van up to 50 meters away.

AiM MXS 1.2 Website Product Description.

MXS/MXG
Display MXS: 5” TFT
MXG: 7” TFT
Resolution 800x480 pixels
Contrast MXS: 600:1
MXG: 1000:1
Brightness 700cd/m2 - 1,100 Lumen
Ambient light sensor Yes
Alarm LEDs MXS: 6 RGB freely configurable
MXG: 8 RGB freely configurable
Shift lights 10 integrated freely configurable RGB LEDs
CAN connections 3
ECU connections CAN, RS232 or K-Line
ECU compatibility + 700 industry leading ECUs
Expansion CAN connection GPS, Channel Expansion, Thermocouple Expansions, Lambda Controller,
SmartyCam
Analog inputs 8 fully configurable, max 1,000 Hz each
Digital inputs 4 Speed inputs, lap signal, coil RPM input
Digital outputs 2 (1 Amp max each)
Accelerometer Internal Three-axial ± 5G + Three-axial Gyroscope
Internal memory 4 GB
Body Anodized Aluminum
Pushbuttons Metallic
Connectors 2 Motorsport connectors
Dimensions MXS: 169.4x97x23 mm
MXG: 237x127.6x26 mm
Weight MXS: 530 g
MXG: 950 g
Power consumption 400 mA
Waterproof IP65



IN THE BOX

MXS 1.2, 37 pins standard harness, GPS Module with cable, USB cable, Software installation CD.

ACCESSORIES

22 pins harness

Part number: V02573020

Download the tech sheet

AiM MXS 1.2

22 pins harness with 1 thermocouple

Part number: V02573080

Download the tech sheet

AiM MXS 1.2

22 pins harness with 2 thermocouples

Part number: V02573160

Download the tech sheet

AiM MXS 1.2

37 pins harness with 1 thermocouple

Part number: V02573040

Download the tech sheet

AiM MXS 1.2

37 pins harness with 2 thermocouples

Part number: V02573050

Download the tech sheet

AiM MXS 1.2

Remote buttons interface

Part number: X08RTN010

AiM MXS 1.2

22 pins female Deutsch connector

Part number: 5CN822F00

AiM MXS 1.2

37 pins female Deutsch connector

Part number: 5CN837F00

AiM MXS 1.2

Mirror camera

Single RearMaster mirror camera patch cable
Double RearMaster mirror camera patch cable
Single AiM mirror camera patch cable
Double AiM mirror camera patch cable

AiM Mirror camera

SPARE PARTS

37 pins harness

Part number: V02573010

Download the tech sheet

AiM MXS 1.2

GPS08 Module

GPS08 Module

USB adapter

Part number: V02573030

Download the tech sheet

USB cable

Part number: X90TMPC002

AiM MXS 1.2
AiM USB bulkhead adapter

Part number: V02573200
AiM MXS 1.2
