The brand new Plug & Play Dash Logger
kit specifically designed for Kawasaki
Ninja ZX-10R*

* ZX-10R, ZX-10RR and ZX-10R SE years 2016-2019 (5th gen)

AiM MXK10 MXK10 is an AiM Dash Logger designed to be easily installed on the Kawasaki Ninja ZX-10R, ZX-10RR and ZX-10R SE produced in the years 2016-2019 (5th gen).
The kit, named MXK10-Gen4, is also available for Ninja produced in the years 2011-2015 (4th gen).

More Clear, More Racing

Forget any light and shadow issue: thanks to its high contrast 5’’ TFT display, in any situation reading data will never be this easy. Moreover, its aluminum body makes MXK10 a lightweight device and the racing inspired design will give your Ninja an even better and more aggressive look.

Full Plug & Play

MXK10 is a full Plug & Play dash logger, completely compatible with the original connector and with the original bracket fixing points of your bike. AiM MXK10 AiM MXK10

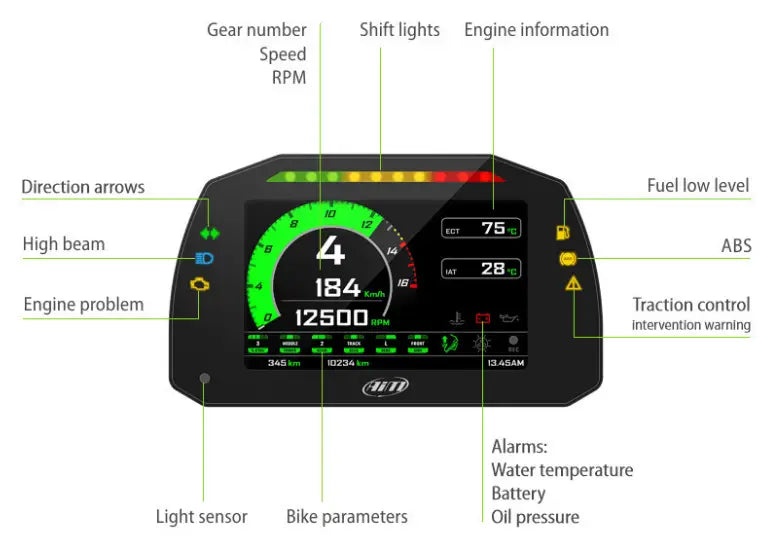

Everything Right Under Control

5' Colour TFT Display
6 Status information LEDs
10 Shift lights
 AiM MXK10

Get the Best out of MXK10

Main connection
Power and interaction with the bike
USB connection
For data download
EXP connection
For to expand your MXK10
Internal memory
4 GB For recording your data
AiM MXK10

A Wide, Complete and User-friendly Menu

AiM MXK10   Find the perfect set-up that fits either your riding-style or the road/track conditions.
The complete menu allows you to easily modify every parameter of your bike: suspension setting, ECU maps, traction control, anti-wheeling, ABS, and so on.


Lap Timing and Data Logging for the Track

AiM MXK10  In case you ride your bike on a track, you may automatically get your lap times, thanks to the GPS Module and to a huge tracks database, installed in the MXK10.
Not only. MXK10 records all the data coming from your ECU, as well as from the GPS Module: you can download them after each session, in order to analyze them and improve your performance, with the same, powerful AiM Software that so many professional racing teams use in all the tracks of the world.


Go even Full Racing

MXK10 is FULLY COMPATIBLE with Kawasaki Racing Kit.
It won’t need any additional wiring but the ones already included in the Racing Kit itself.
Plug it and play it.


MXK10 may even manage a wide range of CAN expansion modules in order to let you acquire data also from suspensions potentiometers, brake pressure sensors, lambda values or tire temperature pyrometers, in order to gather even more specific data.

Lambda controller
Wide band Lambda controller LCU-One, with Bosch LSU 4.9 probe, providing all Air/Fuel data and lambda values, allows to verify the behavior of your ECU.
Channel Expansion
It permits to add four 0-5 Volt analog channels for pressure, temperature sensors and potentiometers.
Channel Expansion

SmartyCam HD cameras
The on-board cameras that overlays on videos the data sampled by your logger.

SmartyCam HDRev. 2.1

SmartyCam GP HD

SmartyCam HD Rev.2

Connection example

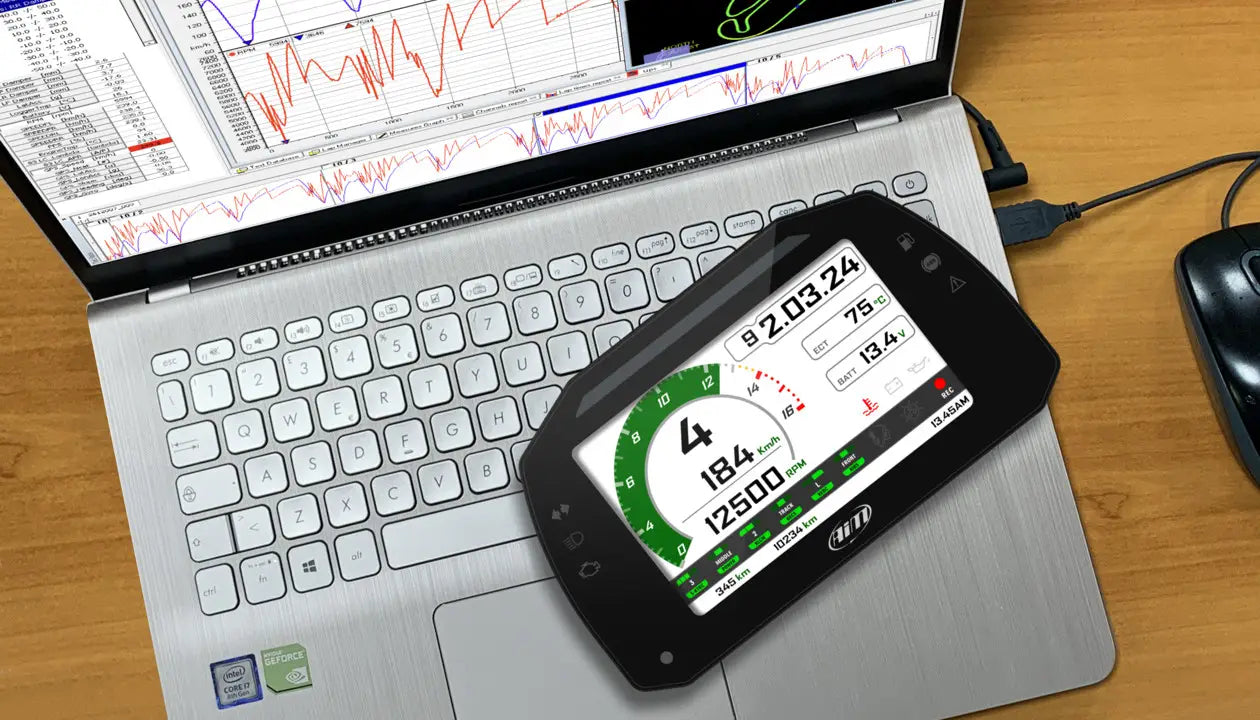

Wi-Fi connectivity and Analysis

Download all your data just wirelessly, for an even more practical usage in your track-day sessions or during your race week-ends. You won’t worry anymore about cables that you may have forgotten at home: using a secure 802.11 Wi-Fi connection, all your data will be stored straight on your PC, ready to be deeply analyzed via our free software Race Studio 3.
Via Race Studio 3, indeed, graphs, histograms, and tables will help you study your performance, providing an objective support to avoid mistakes and improve performances.

AIM MXK10 Website Link:


 Display 5” TFT
 Resolution 800x480 pixels
 Contrast 600:1
 Brightness 700cd/m2 - 1,100 Lumen
 Ambient light sensor Yes
 Status information LEDs 6
 Shift lights LEDs 10
 CAN connections 2
 ECU connections Yes
 External modules GPS Module, Channel Expansion, Lambda Controller, SmartyCam HD
 Wi-Fi connection Yes
 Internal memory 4 GB
 Body Anodized Aluminum
 Connectors 1 JAE connector + 2 Binder connectors
 Power consumption 400 mA
 Dimensions 166x97x23 mm
 Weight 530 g
 Waterproof IP65






MXK10 dash logger with screws and washers, dedicated GPS Module "Roof" version with anodized plate fixing kit and screws

Product number: XA2MXS12A05R0KN
